Product Features:
- 3D Design Front panel
- Superior Airflow and Ventilation Design.

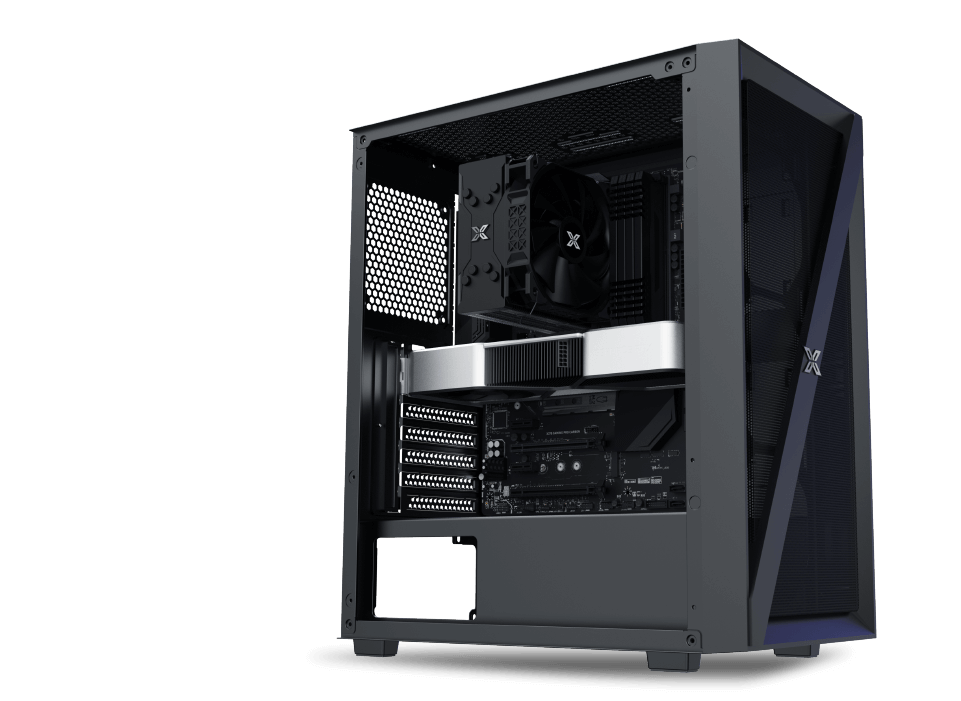

- COMPONENT LIMITATION:
- CPU Cooler up to 170 mm
- Support Graphic Card up to 340 mm
- PSU Limitation up to 180mm

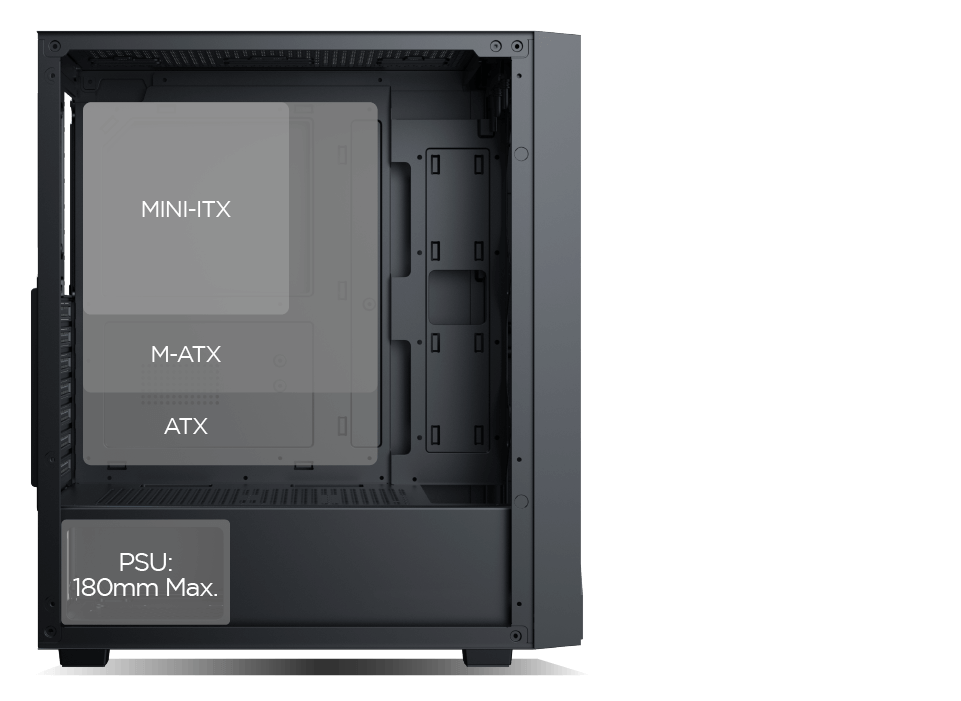

- Support Motherboard up to ATX
- Build With Your Driver Preference
- Effective Heat Dissipation:
- Fan Cooling System:
- Front: 3 × 120mm or 2 × 140mm
- Rear: 1 × 120mm
- Top: 2 × 120mm
- Liquid Cooling System:
- Front: 360mm
- Top: 240mm
- Rear: 120mm
Product Details:
- Product Name: Blade
- Material: STEEL
- Dimension: 385 x 218 x 449mm (LxWxH)

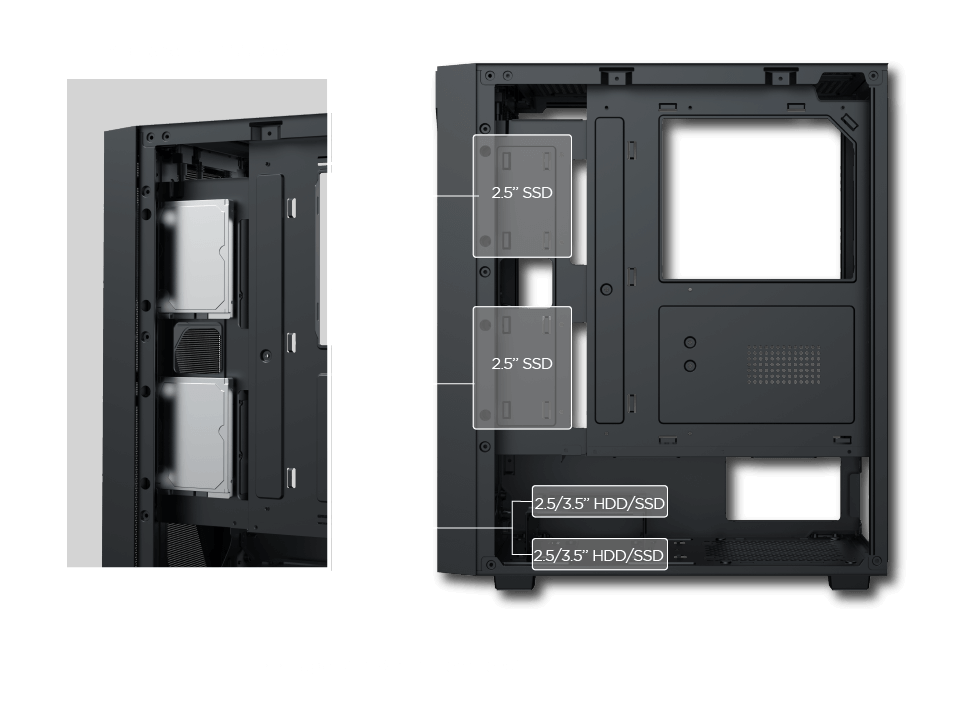

SSD / HDD:
- HDD Cage: 2 × 2.5” & 3.5” Combo
- Motherboard Panel: 2 × 2.5″ SSD

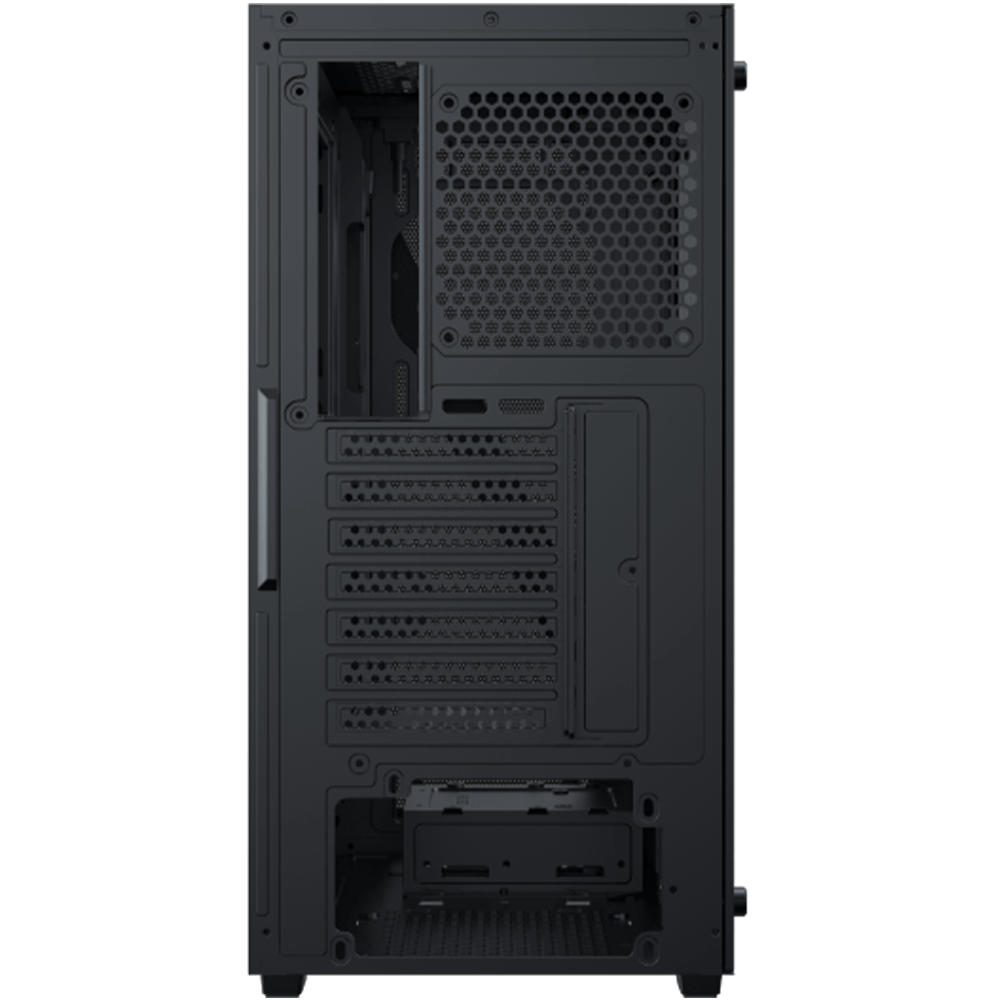

- PCI Slot: 7 Standard Slots
- Motherboard Support: ATX, M-ATX, MINI-ITX
- Power Supply: Standard PS2 ATX PSU
Fan Support:

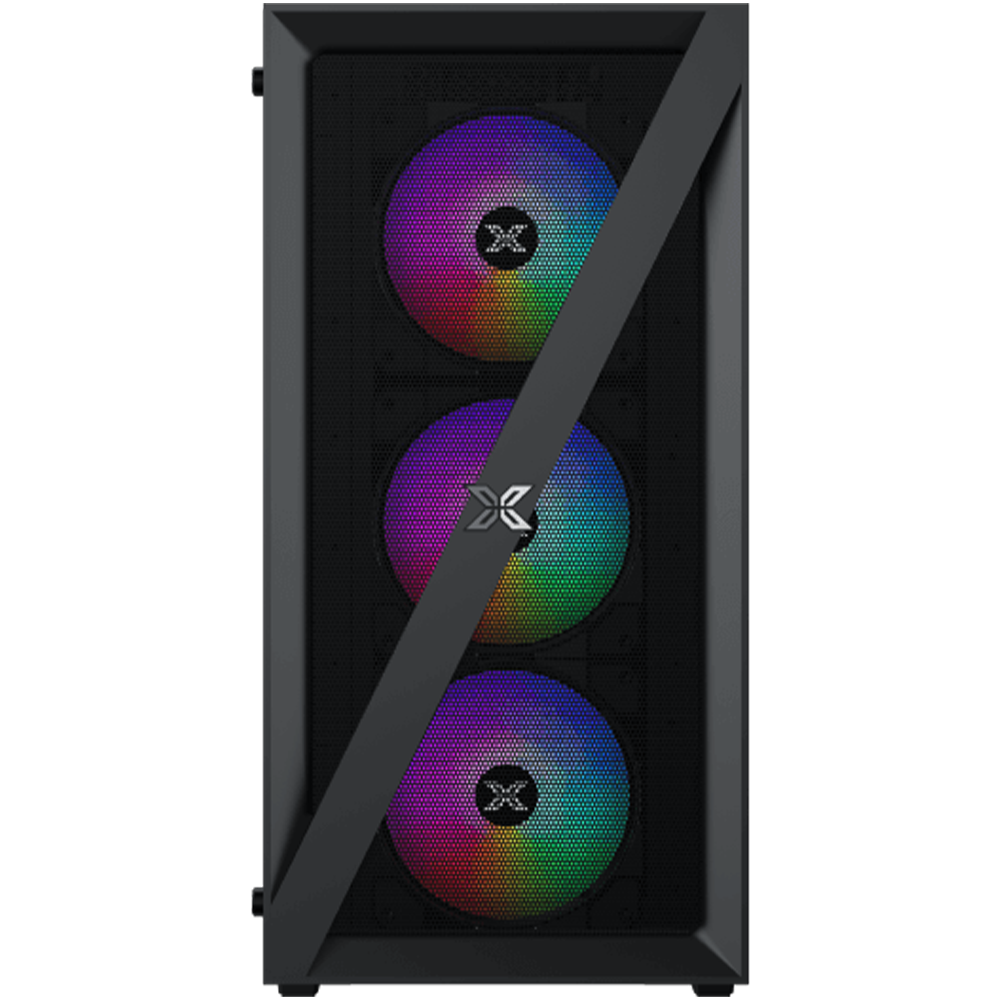

- Front: 3 × 120mm or 2 × 140mm
- Rear: 1 × 120mm
- Top: 2 × 120mm
Liquid Cooling Support:
- Front: 360mm
- Top: 240mm
- Rear: 120mm
I/O Panel:
- 1 × USB3.0
- 2 × USB 2.0
- HD Audio
- CPU Cooler Max. Height: 170mm
- Graphics Card Max Length: 340mm
- Power Supply Max Length: 180mm
Part Number:
- EN40825
