Product Details :

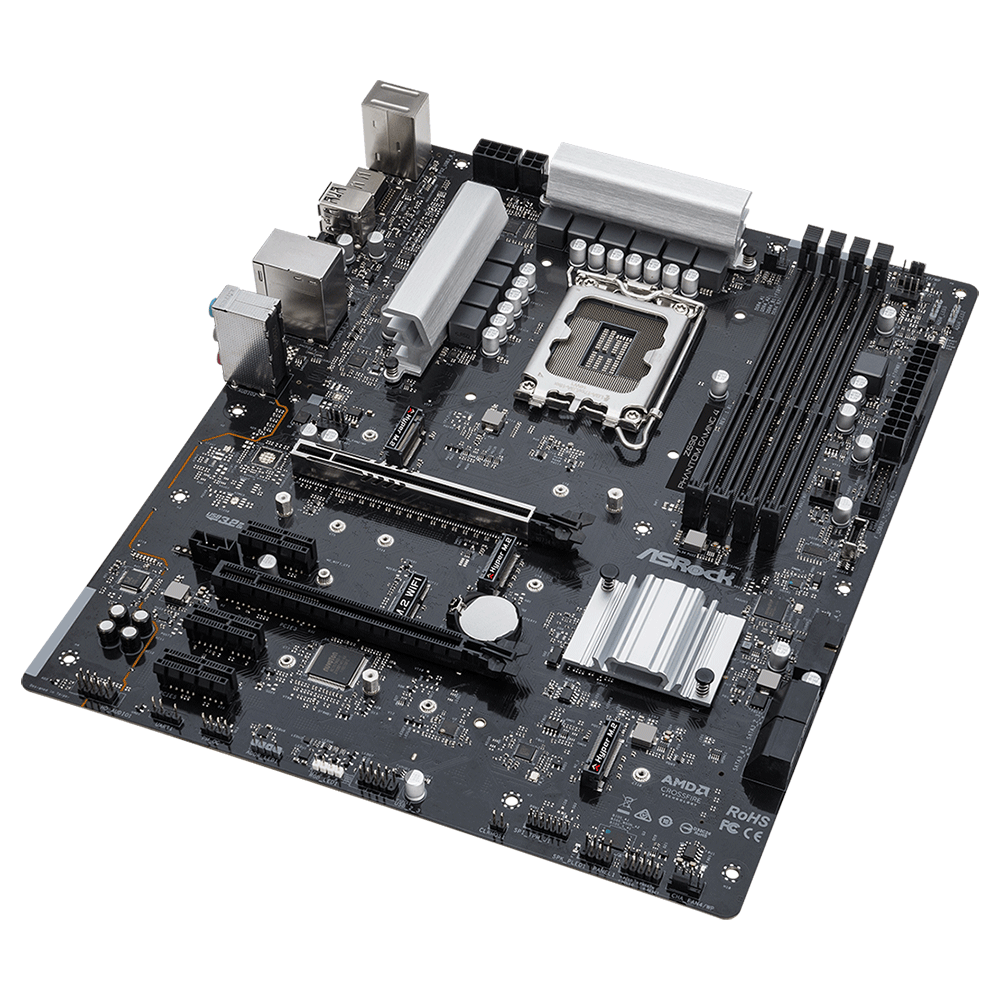

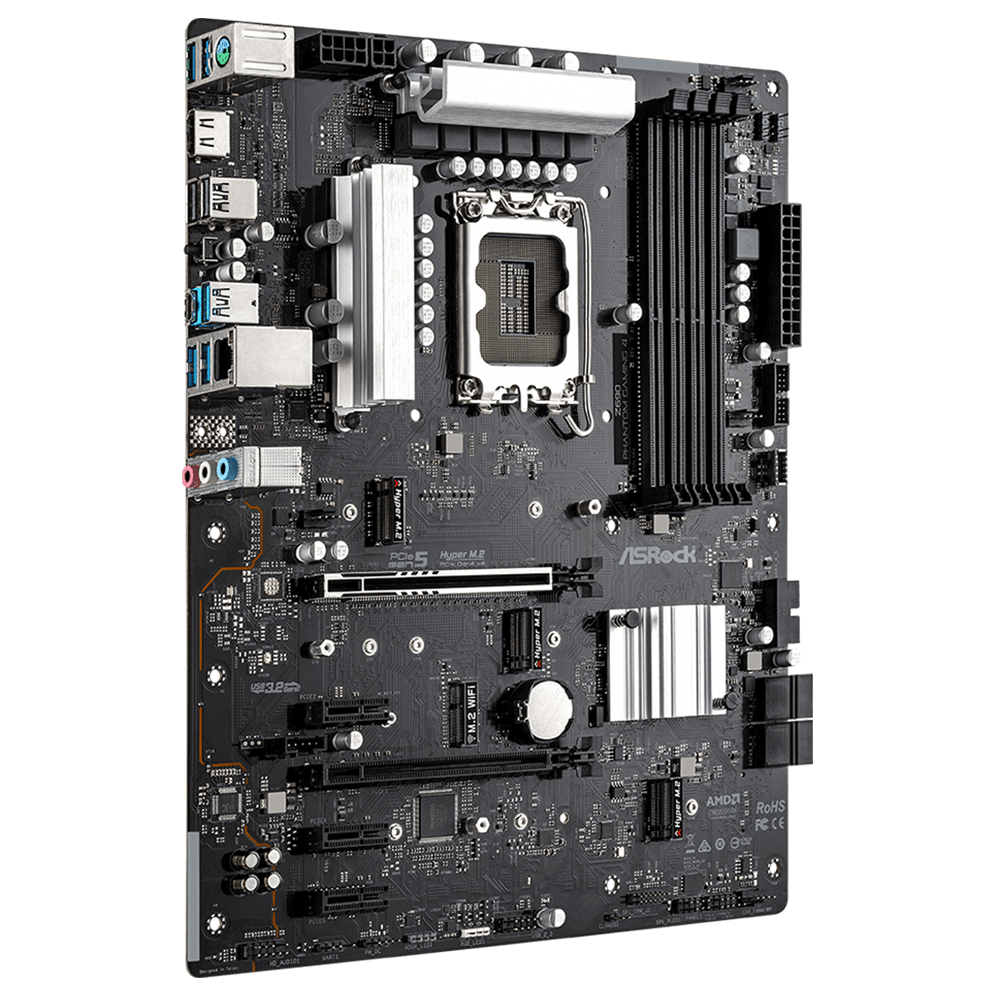

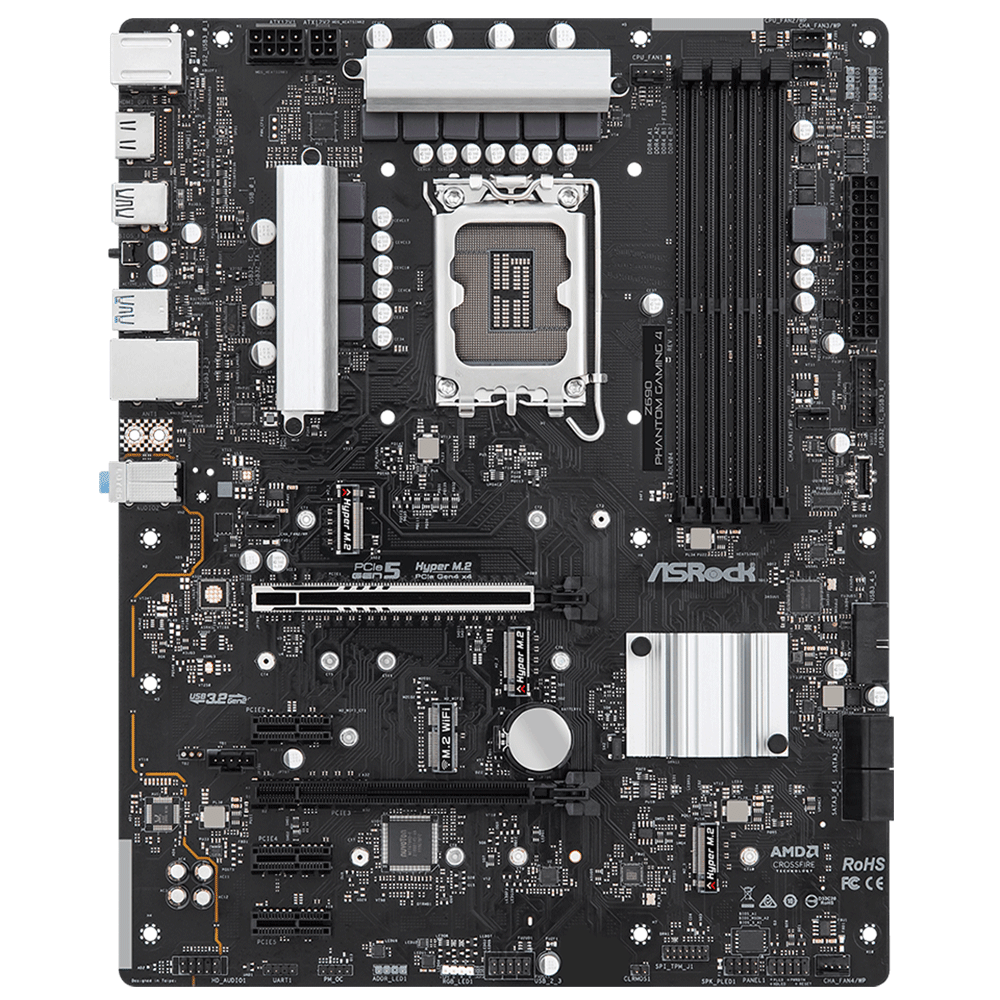

- Model : Z690 Phantom Gaming 4
- CPU Socket : LGA1700
- CPU Type : 12th And 13th Generation intel CPU
- Motherboard Form Factor : ATX
- Quantity of RAM Slots : 4 slots including dual Channel Technology
- Memory Type : DDR4
- Maximum memory Capacity : 128 GB
- Support intel XMP 2.0

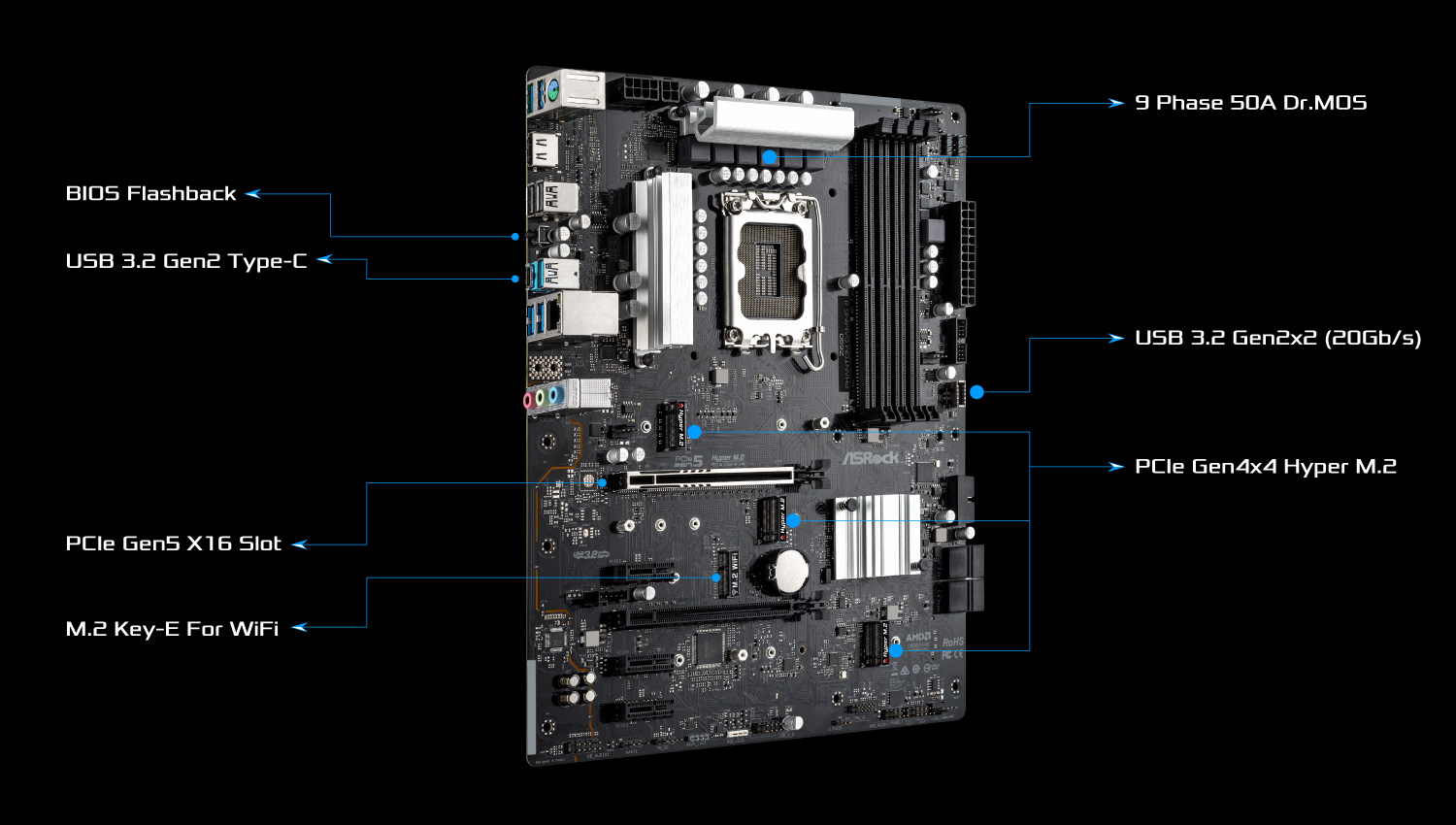

Expansion slots:
- 1x PCIe 5.0 x16 slot
- 1x PCIe 4.0 x16 slot
- 3x PCIe 3.0 x1 slot
Storage :
- 4x SATA 3
- 3x Hyper M.2 (PCIe Gen4 x4)
Audio :
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
LAN :
- 1x Gigabit LAN 10/100/1000 Mb/s

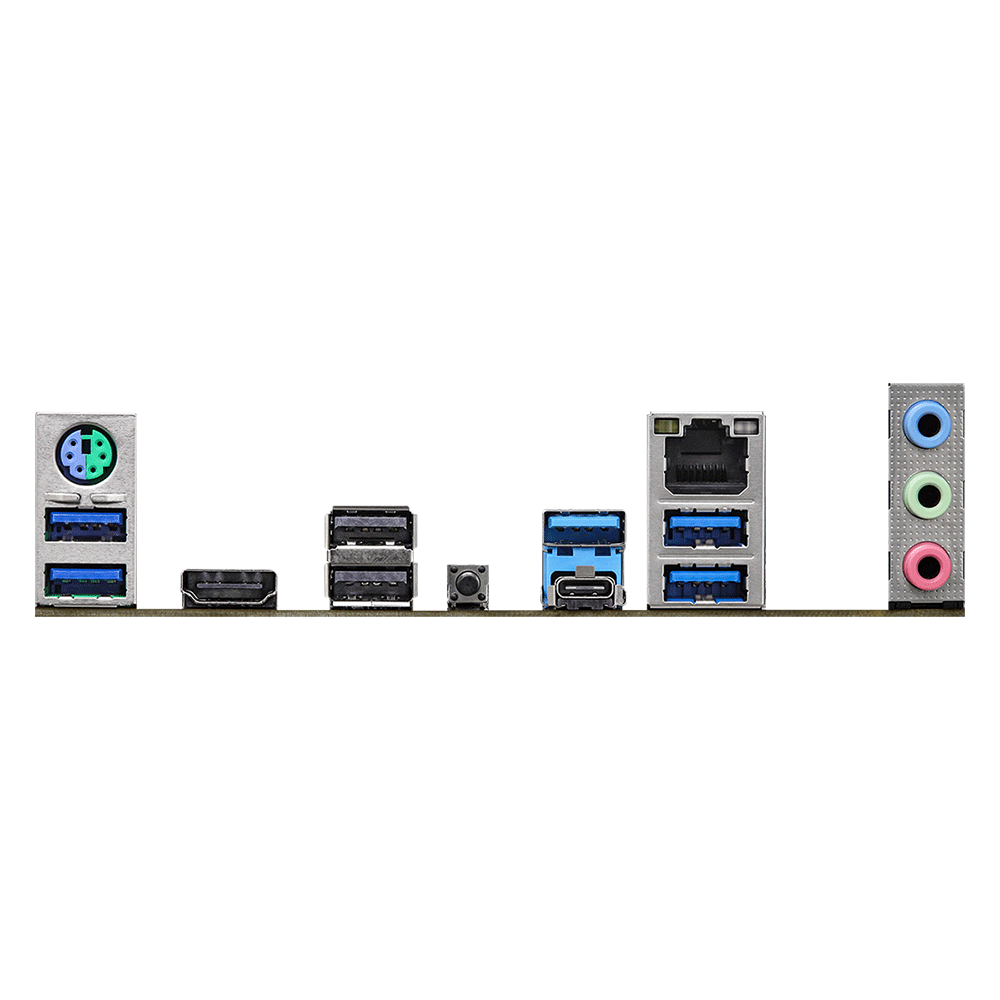

Rear Panel I/O :
- 3x Antenna Mounting Points
- 1 x PS/2 mouse/keyboard port
- 1 x HDMI port
- 1 x USB 3.2 Gen2 Type-A (10Gb/s)
- 1 x USB 3.2 Gen2 Type-C (10Gb/s)
- 4 x USB 3.2 Gen1.0 ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN ports with LED (ACT / LINK LED and SPEED LED)
- 1 x BIOS Flashback Button
- High fidelity audio jacks: line in / front speaker / microphone
I/O Internal Connectors :
- 1 x USB 2.0 headers (support 2 USB 2.0 ports)
- 2 x USB 3.2 Gen1 headers (support 4 USB 3.2 Gen1 ports)
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
Accessories :
- 2 x SATA Data Cables
- 4 x Screws for M.2 Sockets
Part Number:
- 90-MXBH70-A0UAYZ
