Product Details :
CPU :
- LGA1700 socket : Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors
Chipset :
- Intel Z790 Express Chipset
Memory :
- Support for DDR5
- 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for Extreme Memory Profile (XMP) memory modules
Audio :
- Realtek Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
- Support for S/PDIF Out
LAN :
- Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module :
- Intel Wi-Fi 6E AX211
- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
Expansion Slots :
- CPU:
- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
- Chipset:
- 1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
- 1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
Storage Interface :
- CPU:
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
- Chipset:
- 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
- 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
- 6 x SATA 6Gb/s connectors

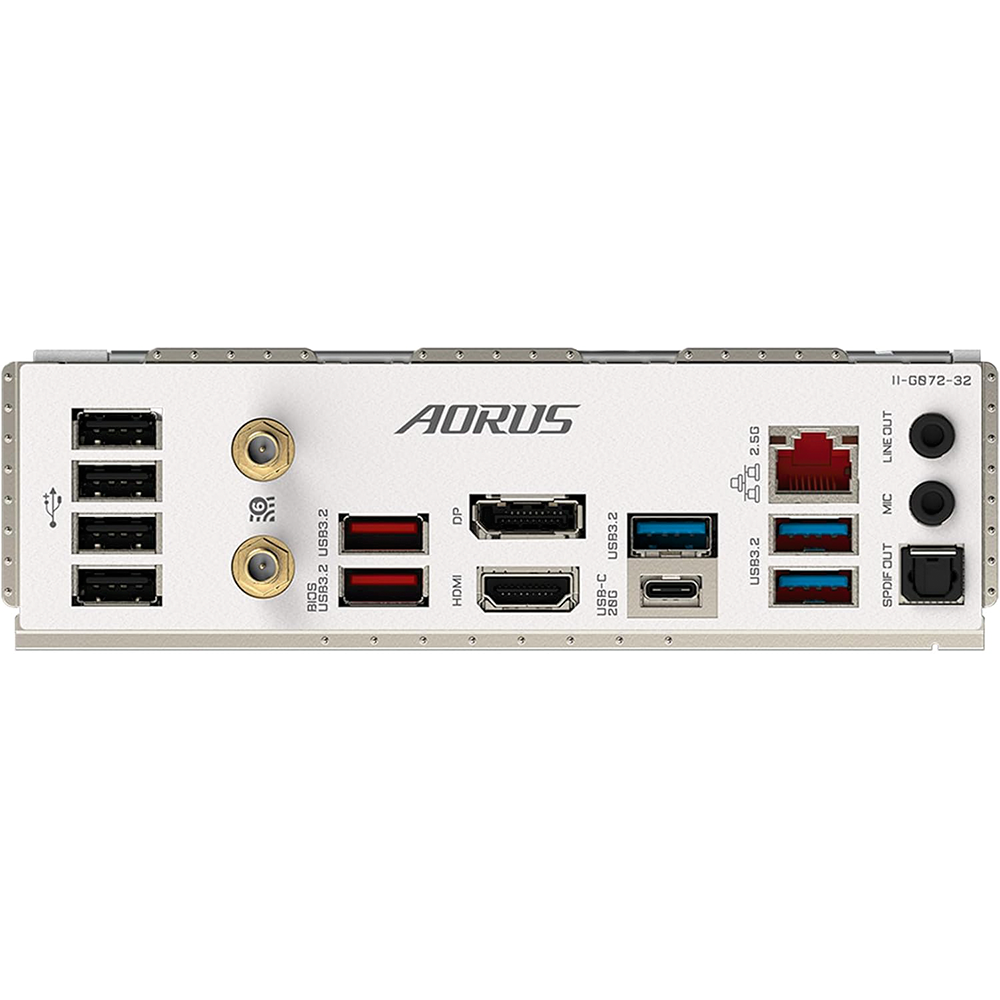

Back Panel Connectors :
- 1 x USB Type-C port, with USB 3.2 Gen 2x2 support
- 2 x USB 3.2 Gen 2 Type-A ports (red)
- 3 x USB 3.2 Gen 1 ports
- 4 x USB 2.0/1.1 ports
- 2 x SMA antenna connectors (2T2R)
- 1 x HDMI 2.0 port
- 1 x DisplayPort
- 1 x RJ-45 port
- 1 x optical S/PDIF Out connector
- 2 x audio jacks
Form Factor :
- ATX Form Factor; 30.5cm x 24.4cm
Part Number:
- Z790 AORUS ELITE AX ICE
