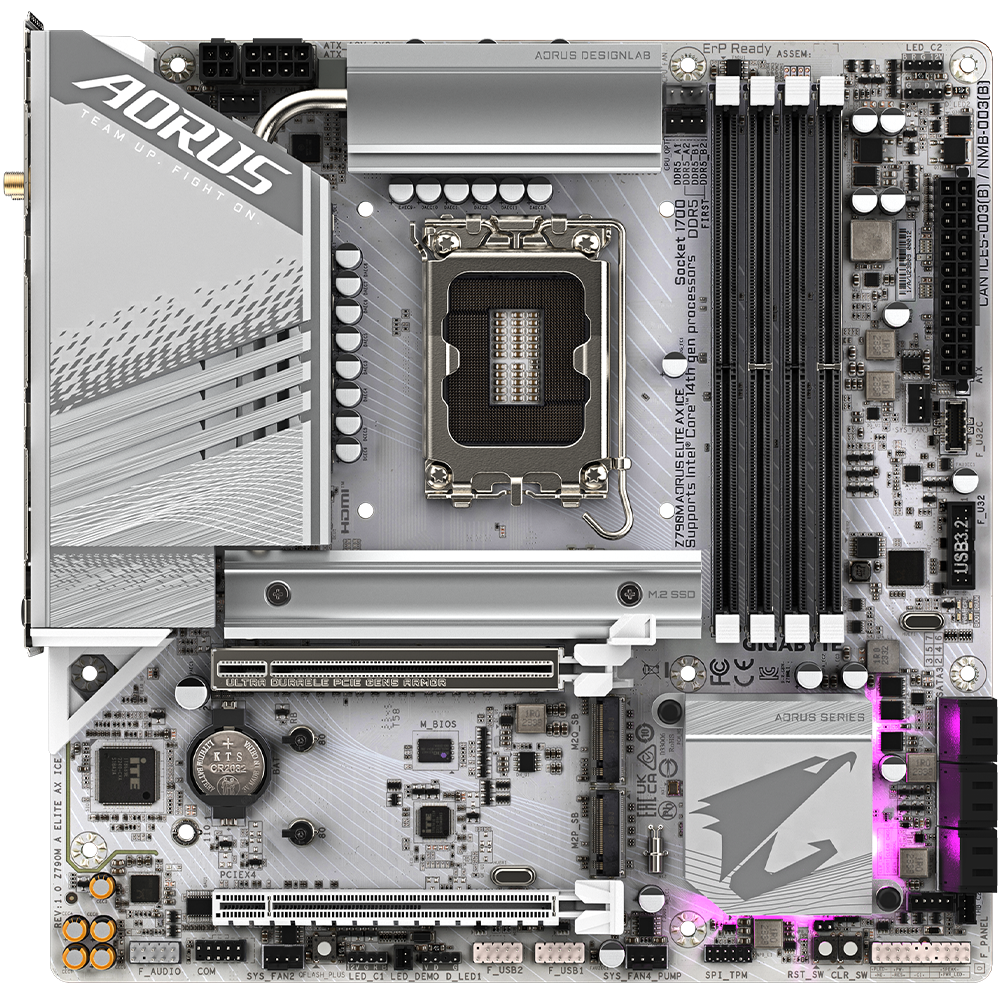

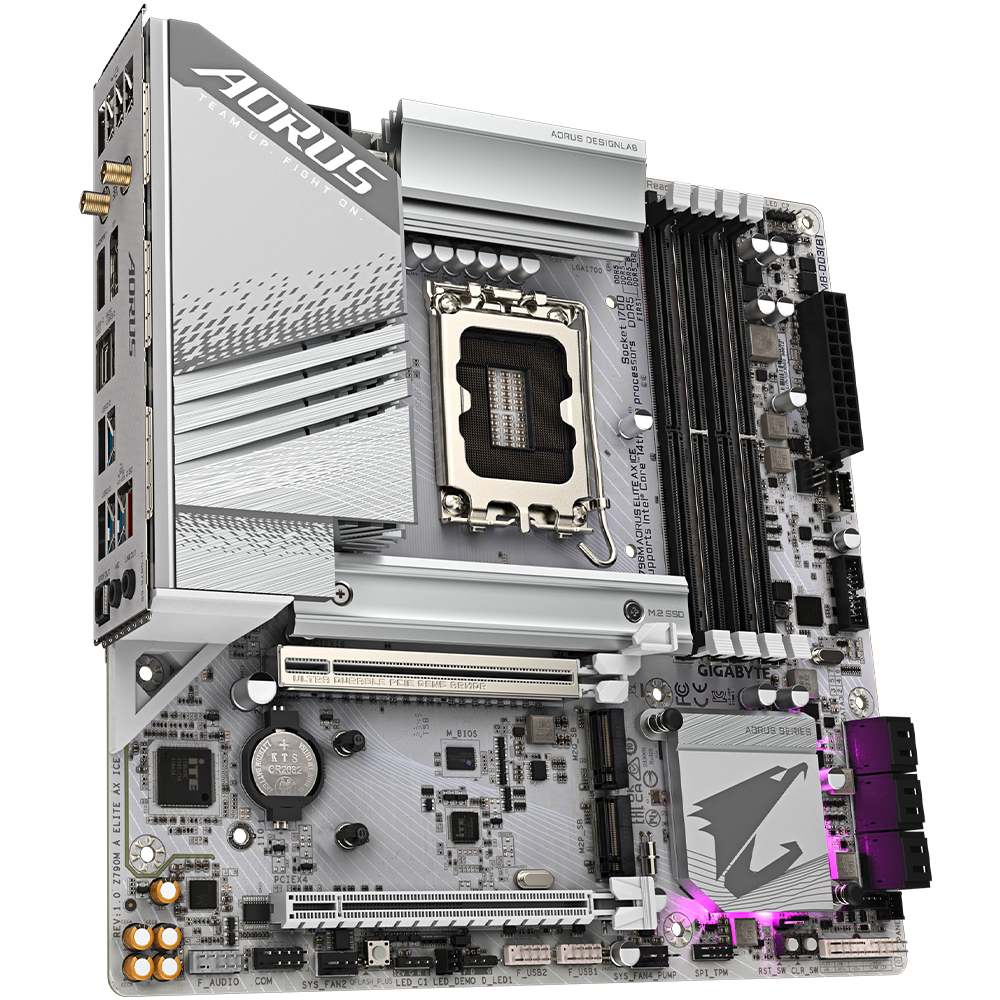

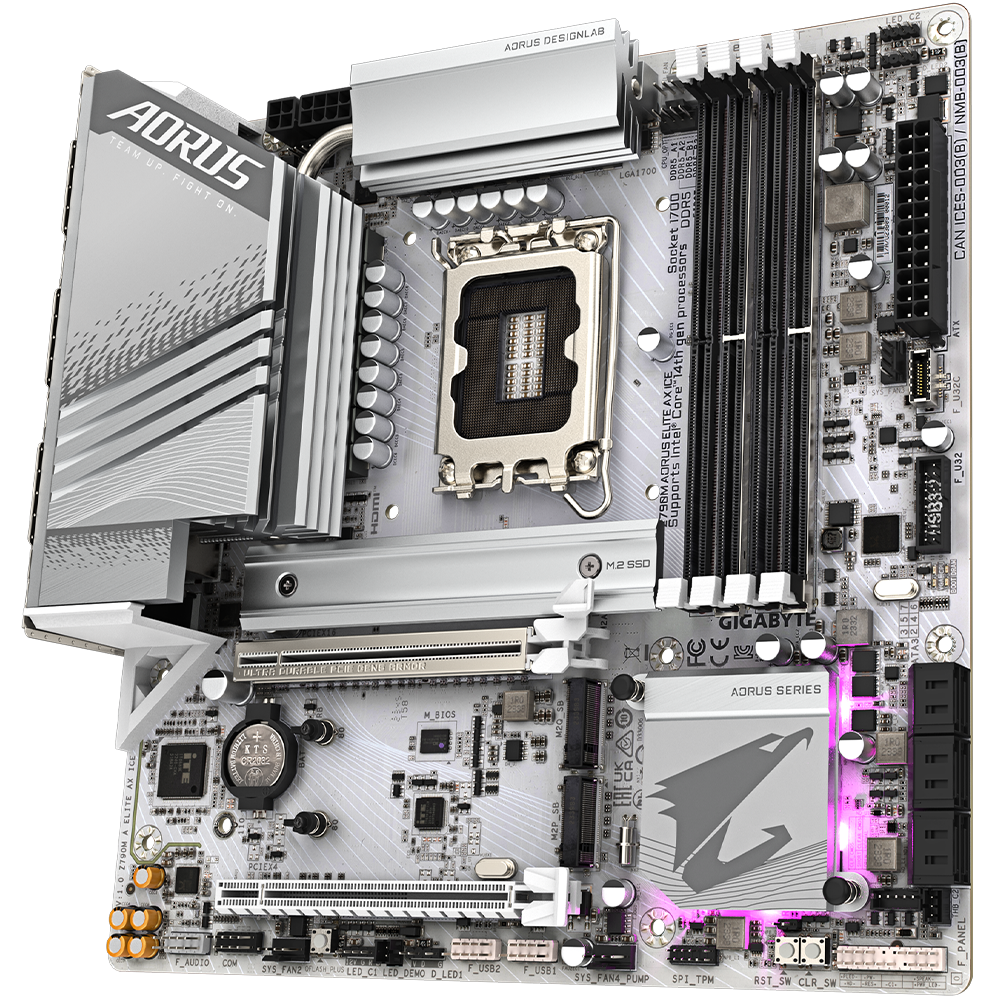

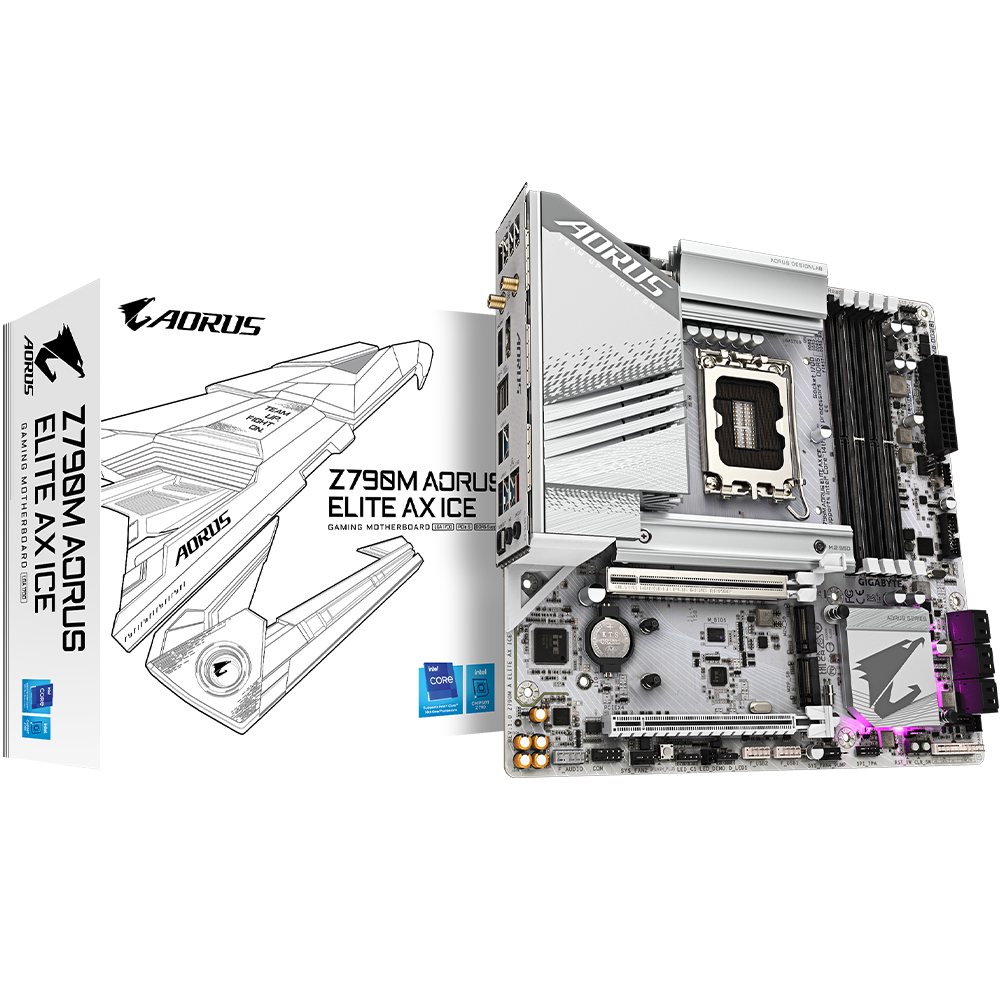

Gigabyte Z790M AORUS ELITE AX ICE LGA1700 Socket Motherboard

• Intel Socket LGA 1700: Support 14th and 13th Gen Series Processors
• Unparalleled Performance: Twin 12+1+1 Phases Digital VRM Solution
• Dual Channel DDR5: 4 × SMD DIMMs with XMP 3.0 Memory Module Support
• Next Generation Storage: 3 × PCIe 4.0 x4 M.2 Connectors
• Advanced Thermal Design & M.2 Thermal Guard: To Ensure VRM Power Stability & M.2 SSD Performance
• EZ-Latch Plus: M.2 Connectors with Quick Release & Screwless Design
• Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax
• Extended Connectivity: DP, HDMI, Front USB-C® 10Gb/s, Rear USB-C® 20Gb/s
• Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
• Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card

Product Details :

CPU :

• LGA1700 socket : Support for the 14th, 13th, and 12th Generation Intel Core, Pentium Gold and Celeron Processors

Chipset :

• Intel Z790 Express Chipset

Memory :

• Support for DDR5
• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for Extreme Memory Profile (XMP) memory modules

Audio :

• Realtek ALC1220 CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• Support for S/PDIF Out

LAN :

• Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module :

• Realtek Wi-Fi 6E AX211
• WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• BLUETOOTH 5.3

Expansion Slots :

• CPU:
• 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
• Chipset:
• 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

Storage Interface :

• CPU:
• 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
• Chipset:
• 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
• 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
• 6 x SATA 6Gb/s connectors

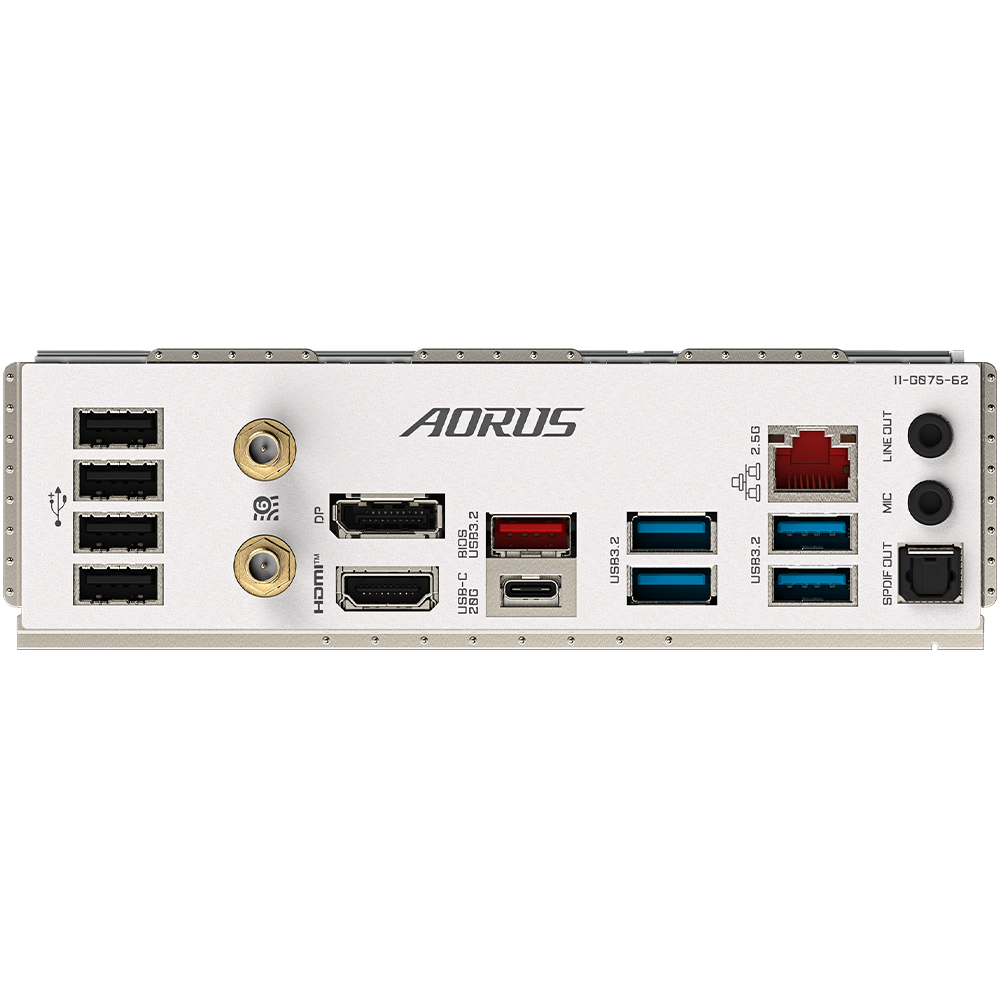

Back Panel Connectors :

• 1 x USB Type-C port, with USB 3.2 Gen 2x2 support
• 1 x USB 3.2 Gen 2 Type-A port (red)
• 4 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 2 x SMA antenna connectors (2T2R)
• 1 x HDMI 2.0 port
• 1 x DisplayPort
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 2 x audio jacks

Form Factor :

• Micro ATX Form Factor; 24.4cm x 24.4cm

Part Number:

• Z790M A ELITE AX ICE
