MSI Z890 GAMING PLUS WIFI LGA 1851 Socket For Intel CPUs Motherboard

• Z890 GAMING PLUS WIFI is designed with durable components to provide great gaming experience. Designed with Killer Wi-Fi 7 and 5G LAN, Thunderbolt 4, PCIe 5.0 solutions, Supplemental PCIe Power and exclusive EZ DIY features, it's ready for 24/7 non-stop gaming of Intel Core Ultra processors.

Product Features:

• Thunderbolt 4 port: Thunderbolt 4 brings Thunderbolt to USB-C at true 40 Gb/s speeds, 8K display support, Daisy-Chain, Multi-Port Accessory Architecture and USB 4.0 compliant.
• EZ M.2 Shield Frozr II: The new tool-less design makes installing or removing your M.2 SSD and Shield Frozr much easier
• EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the taillike lock with one finger, even in the cramped case spaces.
• Lightning Gen 5: The latest PCIe 5.0 solution with up to 128GB/s bandwidth for maximum transfer speed.
• Extended Heatsink Design: MSI extended PWM heatsink and enhanced circuit design ensures even high-end processors to run in full speed.
• Quadruple M.2 Connectors: Onboard quadruple M.2 connectors for the maximum storage performance.
• Wi-Fi 7: The latest wireless solution with a new 320MHz channel, achieving a maximum transmission speed of 5.8Gbps, which is 2.4 times faster than Wi-Fi 6/6E.
• 5G Network Solution: Featuring premium 5G LAN to deliver better network experience.
• Latest DDR5 Memory: A huge step of DDR performance enhancement with the latest DDR5 memory and MSI Memory Boost technology.
• Audio Boost: Reward your ears with studio grade sound quality for the most immersive audio experience.

Product Details:

CPU:

• Supports Intel Core Ultra Processors (Series 2)
• LGA 1851

Memory:

• 4 × DDR5 UDIMM, Maximum Memory Capacity 256GB
• Memory Support 9200 - 6400 (OC) MT/s / 6400 - 4800 (JEDEC) MT/s
• Supports Intel® POR Speed and JEDEC Speed
• Supports Memory Overclocking and Intel® XMP 3.0
• Supports Dual-Controller Dual-Channel mode
• Supports Non-ECC, Un-buffered memory
• Supports CUDIMM

Expansions Slots:

• 3 x PCI-E x16 slot
• 1 x PCI-E x1 slot
• PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
• PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
• PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
• PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

Audio:

• Realtek ALC897 Codec
• 7.1-Channel High Definition Audio

Storage:

• 4x M.2
• M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
• M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280/2260 devices
• M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
• M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
• 4x SATA 6G

USB:

• 4 x USB 2.0 (Rear)
• 4 x USB 2.0 (Front)
• 2 x USB 5Gbps Type A (Rear)
• 4 x USB 5Gbps Type A (Front)
• 1 x USB 10Gbps Type A (Rear)
• 1 x USB 10Gbps Type C (Rear)
• 1 x USB 20Gbps Type C (Front)

LAN:

• Intel Killer E5000 5Gbps LAN

WIRELESS LAN & BLUETOOTH:

• Intel Killer BE1750x Wi-Fi 7
• Supports Bluetooth 5.4

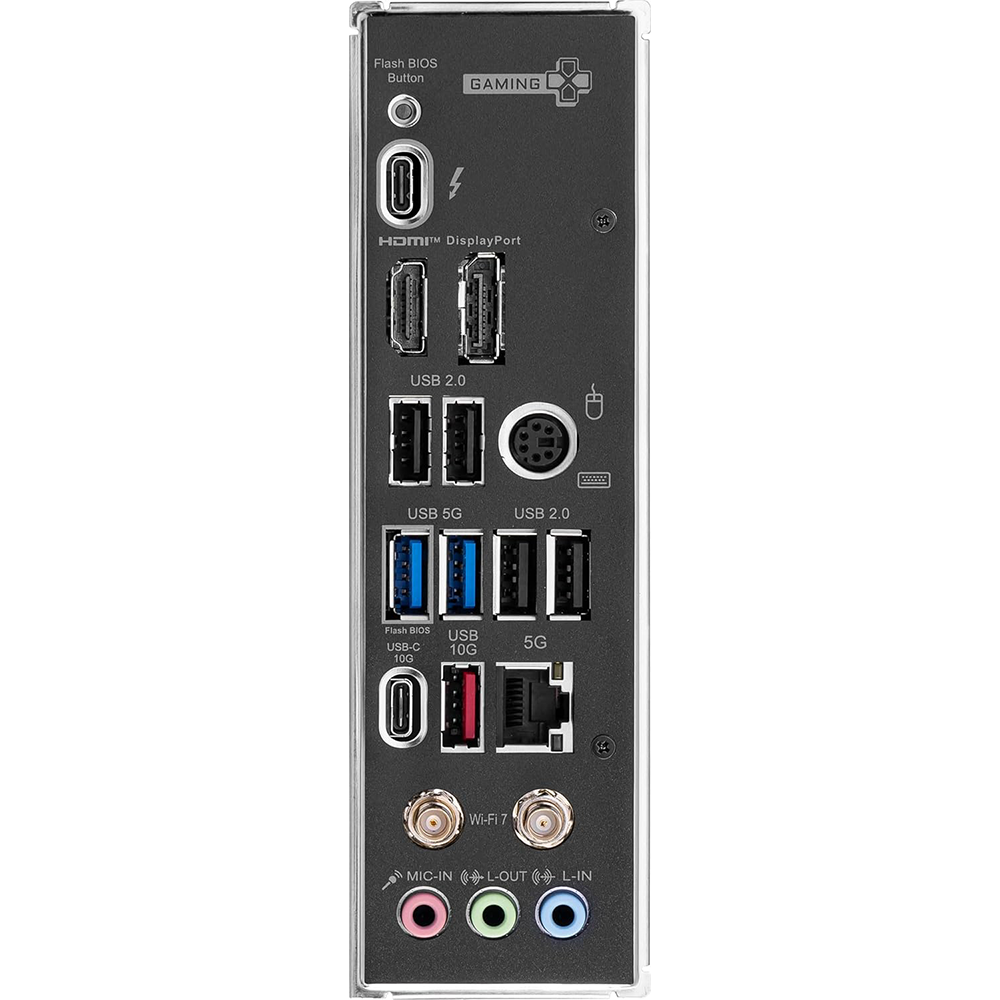

BACK PANEL PORTS:

1. DisplayPort
2. Keyboard / Mouse
3. USB 2.0
4. 5G LAN
5. Wi-Fi / Bluetooth
6. Audio Connectors
7. Flash BIOS Button
8. Thunderbolt™ 4 40Gbps (Type-C)
9. HDMI™
10. USB 2.0
11. USB 5Gbps Type A ports
12. USB 10 Gbps Type C ports
13. USB 10 Gbps Type A ports

Form Factor:

• ATX 243.84mm x 304.8mm

Part Number:

• 911-7E34-002
